Many respondents offered feedback as to which incentives worked best to encouraging and improve IP reuse.
- The incentive cited most often was the resource reduction and the shortened time to market from having an effective process and technology system in place.
- Multiple respondents said that formal planning and processes were a strong incentive.
- Other incentives included clear ownership, encouragement to participate, and having a culture valuing IP reuse.
Some respondents cited obstacles to avoid in gaining team commitment to IP reuse. They commented that management understanding and commitment was a critical element, with an upfront IP roadmap and planning.

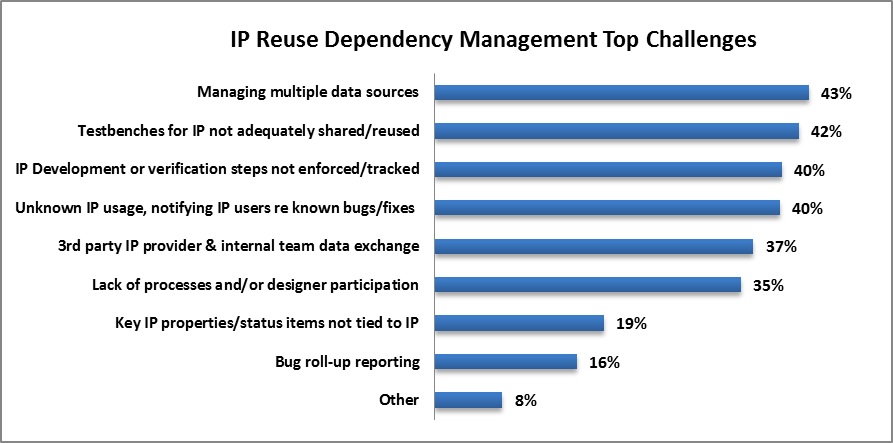

They noted that insufficient methodology guidelines and rules can make reuse difficult or impossible, yet reuse design guidelines on their own were inadequate without the corresponding infrastructure. Multiple people commented that an obstacle to success was the lack of a proper technology infrastructure to facilitate IP reuse.

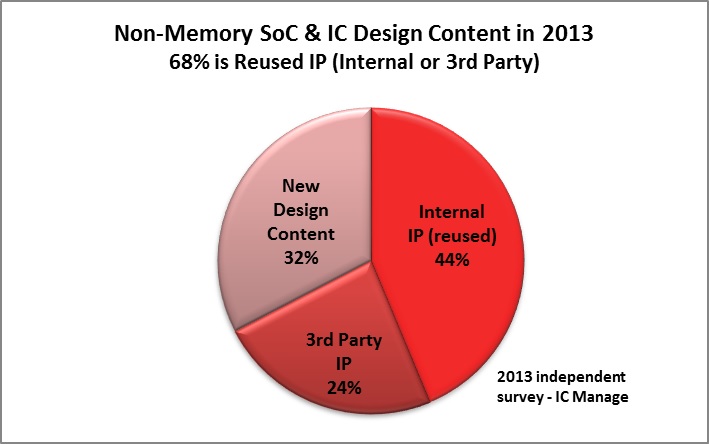

IP-based design is a dominant methodology today, encompassing new design as well as internal and third party IP reuse. The specific goal of IP reuse is that designers find the IP they need, plug it in, and it works. To ensure that IP reuse takes less time than creating and verifying new content, it must address both the design and the verification elements. This creates a complex dependency management and communication requirement, spanning designers, verification teams, project leads, and CAD and engineering management.
Effective IP reuse requires both a technology infrastructure and clear management processes. An easy to deploy IP reuse dependency management system, with appropriate top-down direction and incentives, will motivate team members to participate. Finally, the top incentive for team member participation is to directly experiencing the efficiency and time to market advantages from their first effort.

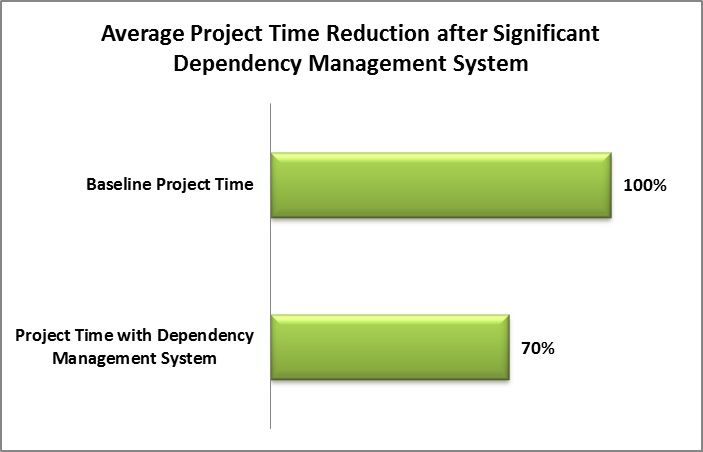

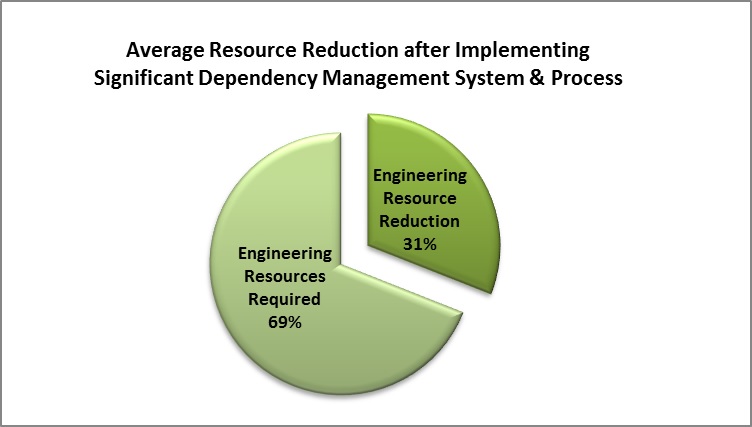

A major goal of IP reuse dependency management is to have a higher return on assets. Users found improvements of approximately 30 percent in both resource reductions and improved time to market.
